[Latest 2026] Sophos Firewall: Guide to Monitoring & Exporting Reports From Sophos Firewall V22

Table of Contents

I – Overview of Monitoring and Exporting Reports From Sophos Firewall V22

This article aims to:

  • Guide how to view and filter logs on Sophos Firewall.
  • Guide reading and exporting reports for operation and reporting.
  • Help administrators quickly detect issues and security threats.

Through this, help the system be monitored effectively and operate more securely.

II – Details on Monitoring and Exporting Reports From Sophos Firewall V22

1. Introduction to Report & Log Features of Sophos Firewall

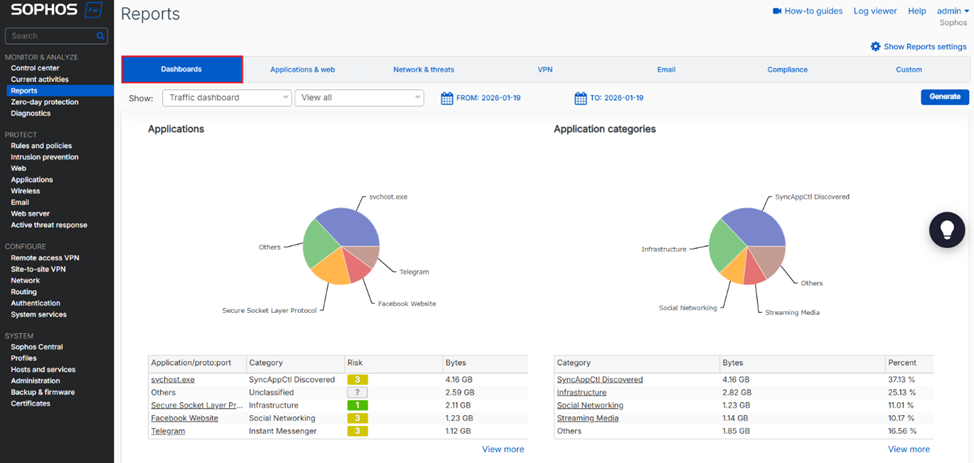

1.1 – Dashboards

View information about network traffic passing through the firewall and security threats.

The main dashboard types include:

User threat quotient (UTQ): ranks users based on security risk score

Traffic dashboard: classification by network traffic

Security dashboard: blocked activities and threats: malware, IPS, spam, attack sources

Executive report: summary information for managers: highlighted traffic & threats

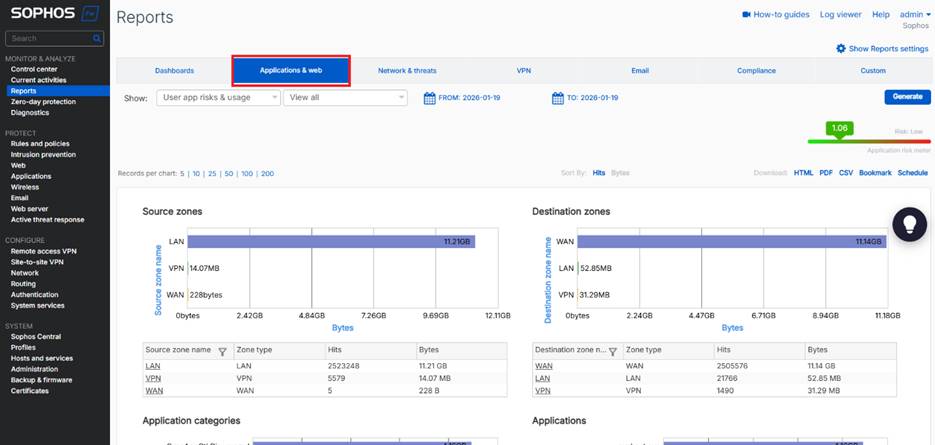

1.2 – Application & Webs

View information about application and Internet usage on your network.

Application Risk Meter is the method by which the Firewall calculates a score based on the risk level and the number of accesses (hits) of each application.
The application risk index is determined based on the average score of all application traffic.

The setting groups that can be monitored in this section include:

  • User app risks & usage: Statistics on the usage of applications and their corresponding risk levels.
  • Cloud applications usage: Statistics on the usage of cloud applications.
  • Blocked user apps: Instances where application access was blocked.
  • Synchronized applications: Applications that are classified and synchronized from endpoints to the firewall.
  • Web risks & usage: Web access activity within the network and related risks.
  • Blocked web attempts: Instances where web access attempts were blocked.
  • Search engine: Statistics of users’ search behavior.
  • Web content: Matches from the content filtering system and related information.
  • Web server usage: Traffic of Applications, Web, Internet, and FTP.
  • Web server protection: Security status of Web Servers, including attacks and attack sources.
  • User data transfer: User traffic.
  • FTP usage: FTP activity.
  • FTP protection: Malicious FTP activity.

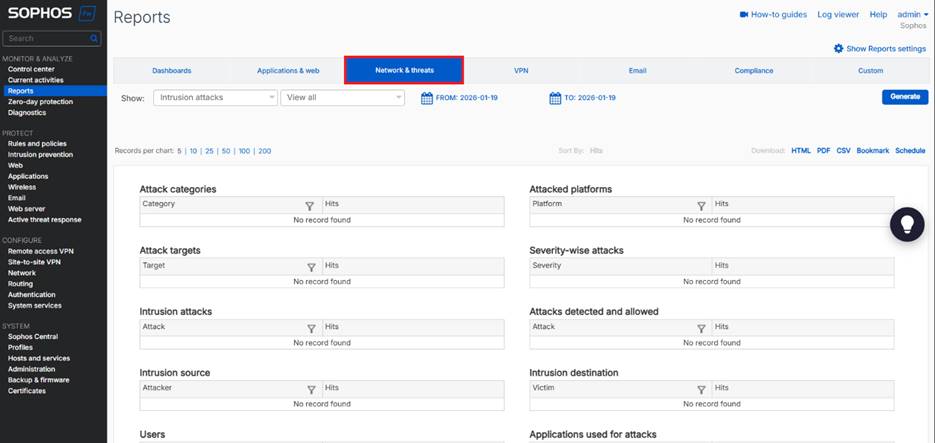

1.3 – Networks & Threat

Displays information about network usage and related threats

Các nhóm Setting có thể theo dõi trong phần này, bao gồm:

  • Intrusion attacks: Attack attempts.
  • Active threat response: Threat events and compromised machines detected by MDR (Managed Detection and Response) and Sophos X-Ops.
  • Wireless: Access points and SSIDs being used.
  • Security Heartbeat: The health status of endpoints within the network based on the connection between the endpoint and the Firewall.
  • Zero-day protection: Advanced protection against new attacks.

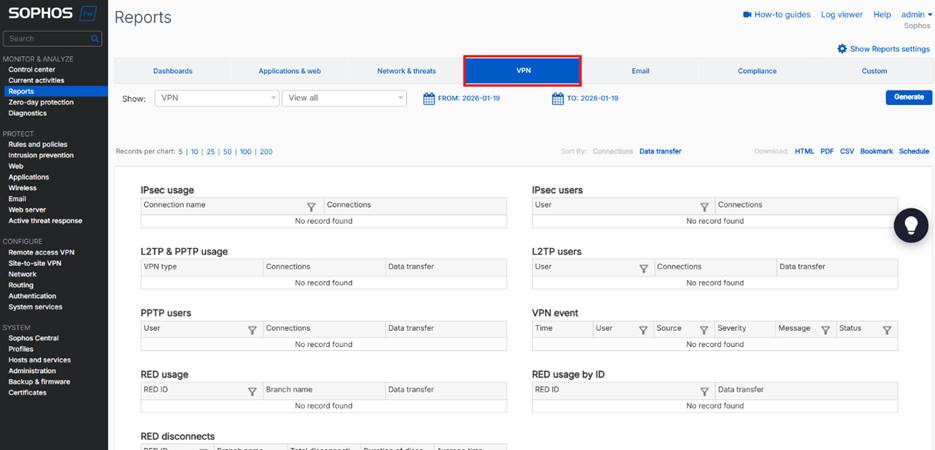

1.4 – VPN

View information about remote users (users connecting remotely) to your network system through IPsec VPN, SSL VPN, and Clientless Access.

The setting groups that can be monitored in this section include:

  • VPN: Traffic generated by remote users through IPsec, L2TP, or PPTP.
  • SSL VPN: Traffic generated by remote users through the SSL VPN Client.
  • Clientless Access: Traffic generated by remote users through a web browser.

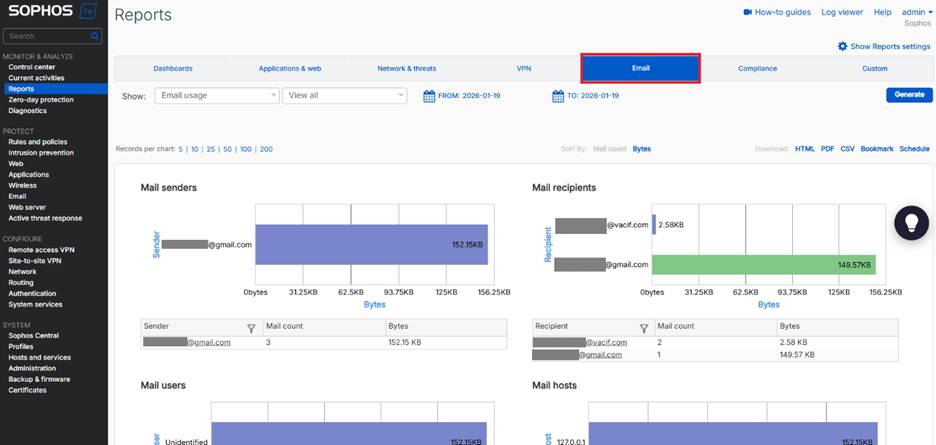

1.5 – Email

View information about email traffic in the network system.

The setting groups that can be monitored in this section include:

  • Email Protection: Email traffic in the network system that contains viruses and spam.
  • Email Usage: Email traffic within the network system.

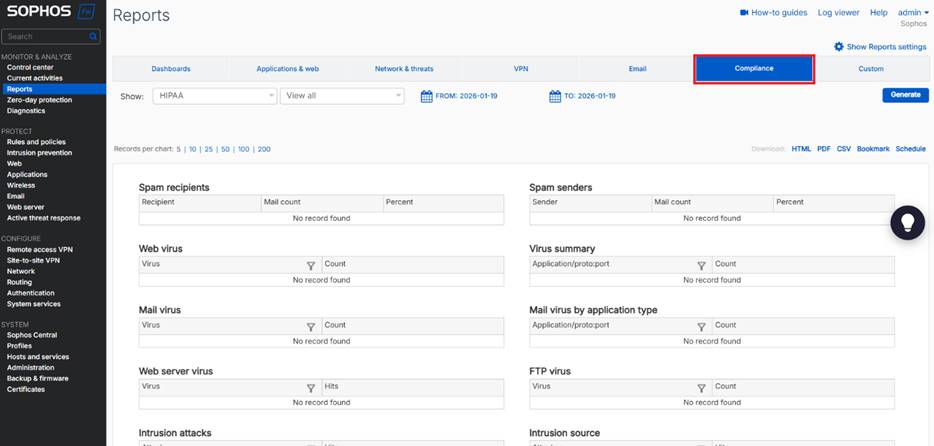

1.6 – Compliance

View information about compliance with regulations/standards:

The standard groups that can be monitored in this section include:

  • HIPAA: Security Report compliant with the HIPAA standard.
  • GLBA: Security Report compliant with the GLBA standard.
  • SOX: Security Report compliant with the SOX standard.
  • FISMA: Security Report compliant with the FISMA standard.
  • PCI: Security Report compliant with the PCI standard.
  • NERC CIP v3: Security Report compliant with the NERC CIP v3 standard.
  • CIPA: Security Report compliant with the CIPA standard.
  • Events: Network events and their corresponding severity levels.

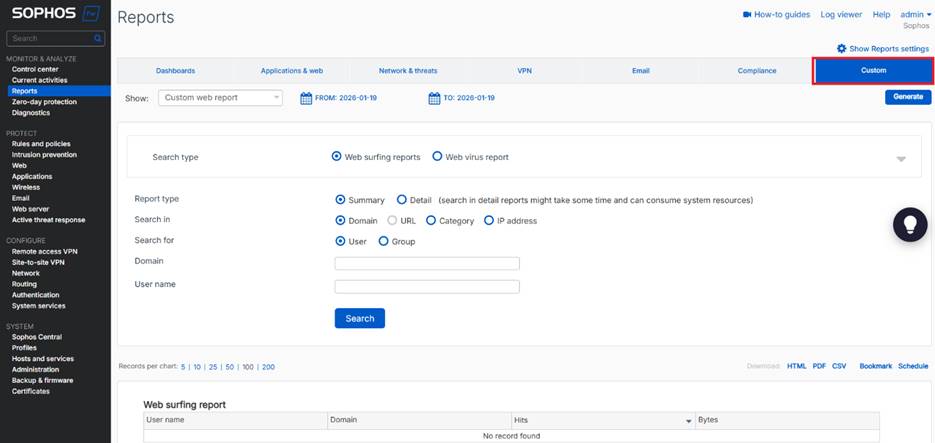

1.7 – Custom

Tạo báo cáo bao gồm các tiêu chí được chỉ định.

The types of reports that can be created in this section include:

  • Web Report: Search for web browsing activity or viruses. Can be filtered by user, domain, and other criteria.
  • Mail Report: Search for Email traffic, Spam, and Viruses. Can be filtered by protocol, user, and other criteria.
  • FTP Report: Search for FTP activity and viruses. Can be filtered by transfer type, user, file, or source IP.
  • User Report: Statistics on usage levels such as high-risk applications, ineffective websites, and detected viruses. Can be filtered by username and source host.
  • Web Server Report: Search for Web Server activity (time, user, URI) as well as Web Server protection events.

1.8 – Log Viewer

The Log Viewer displays system event logs and automatically updates in real time.

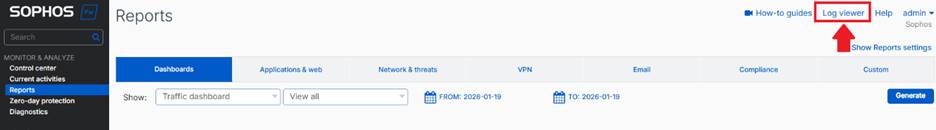

To access it, click Log Viewer in the top-right corner of the Sophos Firewall interface.

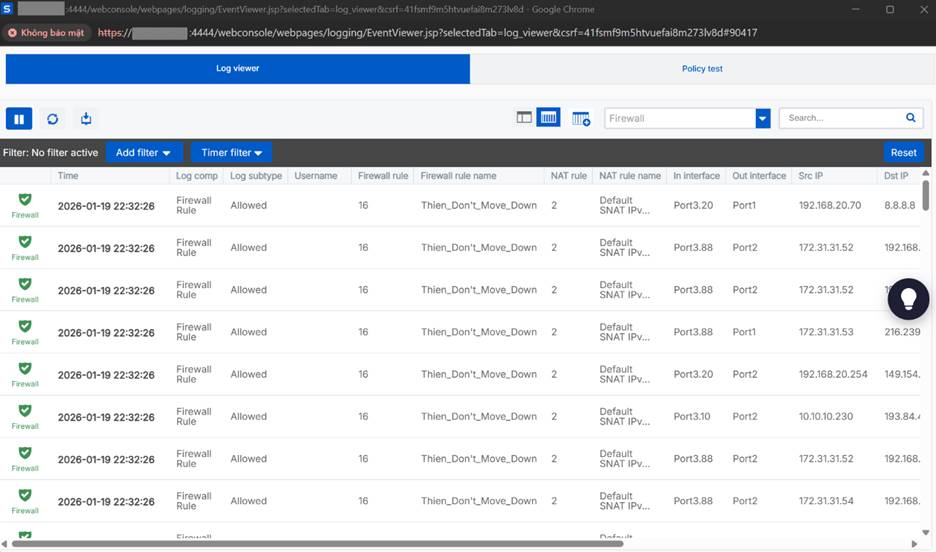

A new Log Viewer window will appear, and administrators can view logs in real time here.

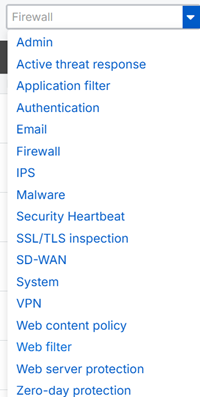

Administrators can choose specific log types to monitor, such as:

  • Admin
  • Active Threat Response
  • Application filter
  • Authentication
  • Email
  • Firewall
  • IPS
  • Malware
  • Security Heartbeat
  • SSL/TLS inspection
  • SD-WAN
  • System
  • VPN
  • Web content policy
  • Web filter
  • Web server protection
  • Zero-day protection

2. How to export reports on Sophos Firewall

During system administration, administrators often need report files summarizing system usage and important threats.

Therefore, in this guide the Executive Report is selected to perform report exporting.

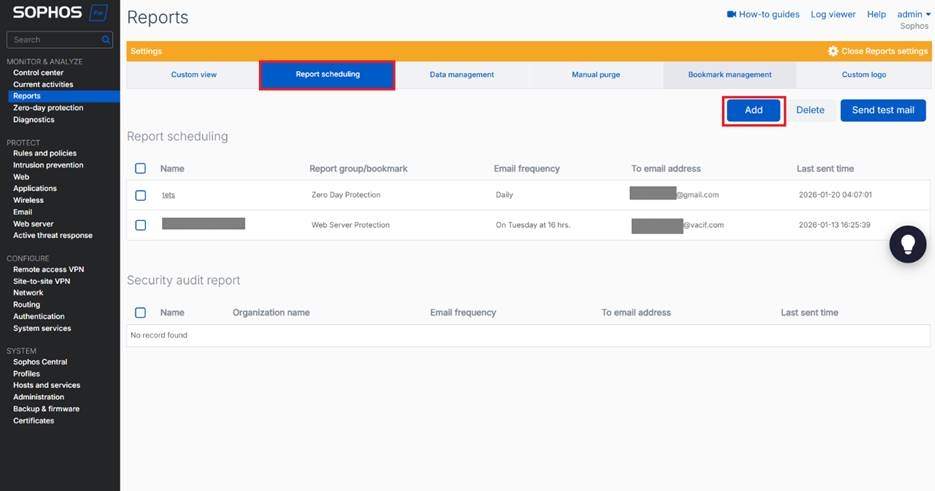

To export a scheduled report, select Show Report Settings.

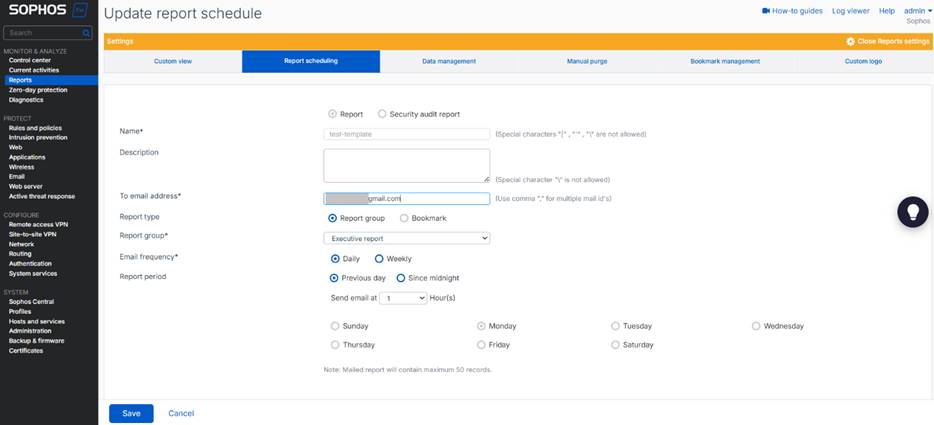

Choose Report Scheduling, then click Add.

Enter the following information:

  • Name: name of the report schedule
  • Description: optional description

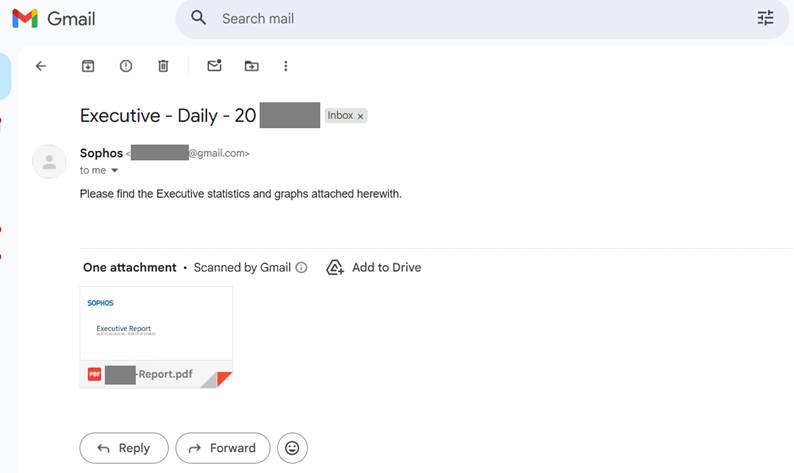

  • To email address: email address receiving the report (multiple emails can be entered)
  • Report type: select the type (for example: Report group)
  • Report group: choose the appropriate report group (for example: Executive Report)
  • Email frequency: choose Daily or Weekly and the time to send the report via email

After completing the information, click Save.
